規格：

FP53  FP115  FP240 FP400 FP720

性能特點

強制對流的控制式APT-預熱技術，溫度范圍從環境溫度以上5到300攝氏度
MP控制器，具有2個程序（每個10節）或1個程序（20節），單個程序各節的間隔時間可以調整到最長99:59小時或999:59小時，該調整適用于程序的所有各節
程序控制器的計時器功能：延時開啟、延時關閉和依賴于溫度的延時關閉
可通過程序編輯器調整斜披函數；風扇速度可調（0-100%）；經過時間指示器
獨立的可調溫度安全裝置，2級（DIN12880）帶有可視溫度報警器
通過背后帶有道風瓣的排氣管（直徑50毫米）和前面的通風滑板調節通風量
用于通訊軟件APT-COM數據控制系統的RS422接口，RS232/RS422接口轉換器轉換到打印機輸出口；打印機間隔時間可調
115升或以下的箱體可疊放；2只鍍鉻擱架

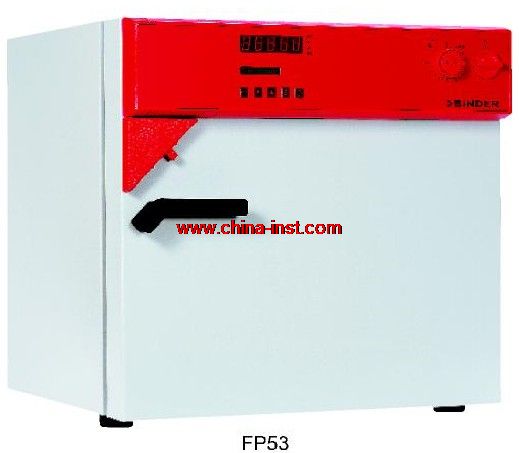

	FP 53
	Exterior dimensions
	Width (mm/inch)	634 / 25.0
	Height (inclusive feet) (mm/inch)	617 / 24.3
	Depth (mm/inch)	575 / 22.6
	plus door handle, I-panel and exhaust duct (mm/inch)	105 / 4.1
	Wall clearance rear (mm/inch)	100 / 3.9
	Wall clearance side (mm/inch)	160 / 6.3
	Exhaust duct outer- Ø (mm/inch)	52 / 2.1
	Steam space volume (l/cu.ft.)	77 / 2.7
	Number of doors	1
	Interior dimensions
	Width (mm/inch)	400 / 15.8
	Height (mm/inch)	400 / 15.8
	Depth (mm/inch)	330 / 13.0
	Interior volume (l/cu.ft.)	53 / 1.9
	Racks, chrome-plated (number standard/max.)	2 / 5
	Load per rack (kg/lbs.)	15 / 33
	Permitted total load (kg/lbs.)	40 / 88
	Weight of the unit (empty) (kg/lbs.)	45 / 99
	Temperature data
	Temperature range, 5 °C (41 °F) above ambient up to (°C / °F)	300 / 572
	Temperature variation 1)
	at 70 °C (± °C)	0.8
	at 150 °C (± °C)	2
	at 300 °C (± °C)	3.7
	Temperature fluctuation (± °C)	0.3
	Heating up time 2)
	to 70 °C (Min.)	6
	to 150 °C (Min.)	24
	to 250 °C (Min.)	45
	Recov. time after door was opened for 30 sec. 2)
	at 70 °C (Min.)	2
	at 150 °C (Min.)	5
	at 300 °C (Min.)	10
	Electrical data
	Housing protection acc. to EN 60529	IP 20
	Nominal voltage (±10 %) 50 / 60 Hz (V)	230
	Nominal power (kW)	1.2
	Energy consumption
	at 70 °C (W)	145
	at 150 °C (W)	300
	at 300 °C (W)	720
