改加熱爐手動升降 (RT-3) 和電子升降 (RT-300)兩種規格，適用于RM 100,RM 200 和 RM 300型號的粘度計和流變儀，適用一次性的鋁杯和MB-B, C or D 杯以及椎板轉子.

RT -300 和RT -3 規格：

應用

石油行業、化工行業、油漆、油墨

原理： 電熱箱

溫度： T° amb. to 300 °C (RT-300)

T° amb. to 200 °C (RT-3)

電源90-240 VAC 50/60 Hz

其他細節 Possibility to use a ramp temperature

controler to realise ramps or successives

steps of T°C

外形尺寸 (WxLxH) 和重量RT-3

電子控制盒:

255 x 265 x 205 mm

支架: 240 x 284 x 655 mm

20 kg

RT-300

297 x 490 x 628 mm

20 kg

名字             參考    尺寸 樣品體積 粘度范圍

同軸轉子系統

MK-RT II B 112570  30 mm_10 - 5 500 000 mPa.s

MK-RT II C 112572  13.6 mm_50 - 27 500 000 mPa.s

MK-RT II D 112573  7.5 mm_2000 - 500 000 000 mPa.s

MB-B

alu cup 114318 Lot of 100 70 ml _

MB-C

alu cup 114306 Lot of 100 20 ml _

MB-D

alu cup 114319 Lot of 100 8 ml _

B ring 112611 _ _ _

C insert 112612 _ _ _

D insert 112614 _ _ _

椎板系統

KP insert

RT 300 112613 _ _ _

KP cone

RT 2020 312020  20 mm á 2° 0.075 ml 100 - 8 000 000 mPa.s

KP cone

RT 5020 315020  50 mm á 2° 1.14 ml 10 - 1 000 000 mPa.s

=========================================

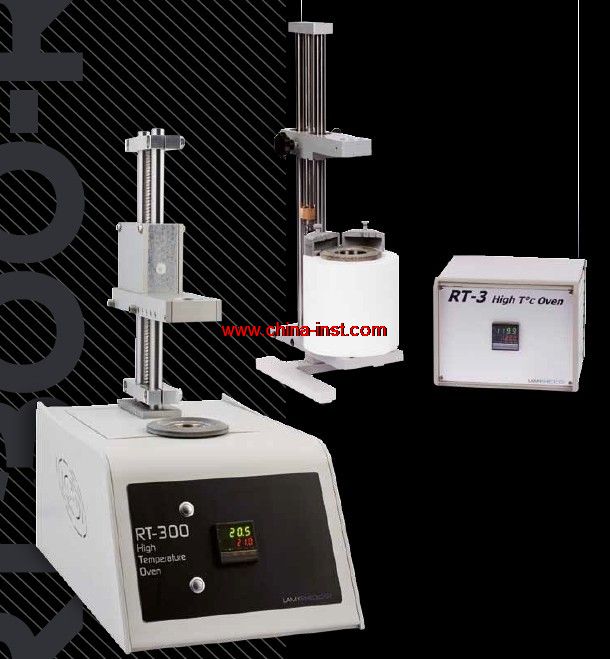

Electrical oven with manual (RT-3) or

electric (RT-300) up and down for RM 100,

RM 200 or RM 300.

They’re using aluminum disposable cups,

MB-B, C or D and cone-plate geometries.

RT -300 - RT -3 SPECIFICATIO NS

APPLI CATIO NS

Petroleum industry Chemical industry Paint/Ink

Measuring principle Electrical oven

Temperature T° amb. to 300 °C (RT-300)

T° amb. to 200 °C (RT-3)

Supply voltage 90-240 VAC 50/60 Hz

Other detail Possibility to use a ramp temperature

controler to realise ramps or successives

steps of T°C

Dimensions (WxLxH) and weight RT-3

Electronic box:

255 x 265 x 205 mm

Stand: 240 x 284 x 655 mm

20 kg

RT-300

297 x 490 x 628 mm

20 kg

APPLI CATIO NS

Petroleum industry Chemical industry Paint/Ink

Name Reference Dimensions Volume Viscosity range

Coaxial measuring system

MK-RT II B 112570  30 mm

_

10 - 5 500 000 mPa.s

MK-RT II C 112572  13.6 mm

_

50 - 27 500 000 mPa.s

MK-RT II D 112573  7.5 mm

_

2000 - 500 000 000 mPa.s

MB-B

alu cup 114318 Lot of 100 70 ml _

MB-C

alu cup 114306 Lot of 100 20 ml _

MB-D

alu cup 114319 Lot of 100 8 ml _

B ring 112611 _ _ _

C insert 112612 _ _ _

D insert 112614 _ _ _

Cone-plate

measuring systems

KP insert

RT 300 112613 _ _ _

KP cone

RT 2020 312020  20 mm á 2° 0.075 ml 100 - 8 000 000 mPa.s

KP cone

RT 5020 315020  50 mm á 2° 1.14 ml 10 - 1 000 000 mPa.s
