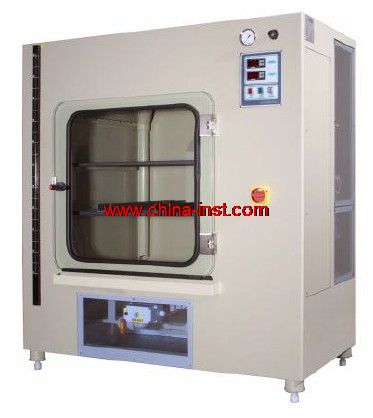

創新：結果緊湊，垂直模式的腐蝕試驗設計。

分400L 和1000L 基本型和增強型 四個型號。

新的緊湊型和功能設計

Salt Spray Tests

鹽霧試驗

 Condensation Tests

凝結試驗

執行標準：



Basic models			Enhanced models
50180 method A1/A2/A3 AS 2331 method 3 ASTM B117 ASTM B287 ASTM B368 ASTM D1735 ASTM D2247 ASTM G85 A1 BS 3900/F12 BS 3900/F4 BS 3900/F9 BS 5466 Part 1/2/3	BS 7479 BS EN 60068-2-11 BS EN ISO 7253 BS 2011 Part 2.1 D17 1058 DEF 1053 METH 24 EF 1053 METH 36 DIN 40046 DIN 50 017-KK DIN 50021 DIN 50907 DIN 50958 DIN 53167	DIN 55991 ECCA T8 FLTM BI 103-01 GM4298P GM4465P IEC 68-2-11 JIS H 8502 Meth1/2/3 JIS Z 2371 JNS 30.16.03 ISO 11503 ISO 1456 ISO 3768		ISO 3769 ISO 3770 ISO 4541 ISO 7253 ISO 9227 MIL-STD-202 NFT 30-077 NFX 41-002 RES.30.CT.117 SIS 184 190 VG 95 210	ASTM G43 ASTM G85 A3 DEF 1053 METH 36 RES.30.CT.119 DIN 50907 DRY MIL-STD-810 UNI 9399 UNI 9590 UNICHIM 652 UNICHIM 741 PROHESION ASTM G85 /A5

功能：

鹽霧試驗

技術規格：



Features / Models	Basic	Enhanced
Strong structure overall 10mm thick polypropylene construction with built-in salt solution reservoir.	yes	yes
Glass door for easy viewing inside test chamber, top cover is peaked to prevent dripping on samples.	yes	yes
Complete Spray nozzle made in plastic material, suitable for ISO 9227 AASS and CASS tests.	yes	yes
Fog diffuser in the centre of the test chamber allows fog uniformity.	yes	yes
Humidifying tower with automatic water level restoring system and temperature-controlled water heater.	yes	yes
Peristaltic pump for salt solution dosage.	yes	yes
Ergonomic control panel.	yes	yes
Pressure regulator for control of nozzle air pressure.	yes	yes
Pressure gauge for display of nozzle air pressure.	yes	no
Digital temperature controller of test chamber temperature.	yes	no
Timer to set test duration, programmable up to 9999 hours, with stopping of all functions at test end.	yes	no
Pilot lamp to signal lack of salt solution.	yes	no
Microprocessor control panel. Test status continuously displayed on a large LCD with 4 lines display for test parameters and program menu.	no	yes
Free programming, up to 15 different test programs, input via keyboard with soft keys and tactile feedback.	no	yes
Self-diagnostic, routine service reminders including warning messages and safety shut down.	no	yes
Complete test report: chamber test temperature, humidifier temperature, air nozzle pressure, dosing pump RPH are periodically measured and saved in the controller memory, and by simply pressing a key you can print a complete report of the test.	no	yes
Data transfer via RS232-C serial interface.	no	yes
Air and water filter to be installed on supply lines.	yes	yes
4 bars and 3 standard specimen holders supplied.	yes	yes



Technical data / Models	400 l Basic / Enhanced		1000 l Basic / Enhanced.
Physical dimensions
Overall dimensions (mm)	1320 x 780 x 1450 (W x D x H)		1640 x 880 x 1800 (W x D x H)
Test chamber internal dimensions (without dome area) (mm)	800 x 700 x 800 (W x D x H)		1100 x 800 x 1140 (W x D x H)
Test chamber internal volume (without dome area) (litres)	448		1000
Weight (Kg)	168		300
Salt solution reservoir capacity (litres)	110		260
Electrical supply
Type of connection		1/N/PE
Voltage (V)		230 +- 10 % 50 Hz
Current consumption (A)	9		14
Water supply for humidifier
Type of water		demineralised
Water pressure (bar)		2-4
Water consumption (approximate) (litres/day)		3
Air supply
Type of air		Filtered, oil free
Air pressure (bar)		4-6
Air consumption (approximate) (Nm3/h)		5-8
Temperature range
Test chamber temperature range (°C)		Ambient to 50
Humidifier temperature range (°C)		Ambient to 70
Supplied accessories
Rods	4		6
Test panel racks	3		4
Air filter and pipe (4 m)		yes

循環測試選項

Enhanced model control panel allows easy programming of cyclic test combining: Salt spray, Water condensation, Dry off and Ambient condition. To perform cycling the test chamber must be completed with the following optional parts:

增強模型的控制面板允許循環試驗結合易于編程：鹽霧，冷凝水，干燥和環境條件。執行循環試驗室必須完成下列可選部分：

Option for Dry Corrosion, Scab Corrosion cycle. An air heater is installed to heat purging air before introducing it in the test chamber and a Titanium panel on the bottom of test chamber turns a flooded bottom into a dry bottom. Only a dry chamber bottom allows fast drying of the samples.

干腐蝕選項，赤霉病腐蝕周期。空氣加熱器安裝到熱瀉空氣之前，將其在試驗室和試驗室底部的鈦板將淹沒底成干底。只有一個干燥室底部允許快速干燥的樣品。

Option for ASTM G85-98 annex 5 Prohesion. In addition to parts installed for dry corrosion a bypass is installed on the humidifier to meet standard requirements with respect to fog production.

ASTM g85-98附件5 Prohesion測試選項。除了安裝干腐蝕旁路部分安裝在加濕器對霧的標準化生產。

Option for ASTM G85-98 annex 4 salt/SO2 spray testing. An external SO2 dosing system is supplied and a gas diffusing device is installed in the test chamber.

選擇ASTM g85-98附件4鹽／SO2噴霧試驗。一個外部的SO2加藥系統提供和氣體擴散裝置安裝在試驗室。
