一、產品特點:
訂貨號 3964000

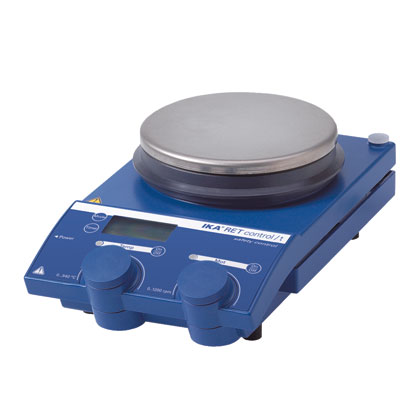

New safety magnetic stirrer with heating, suitable for unsupervised operation. - Timer: min. 1 min / max. 9 h 59 min - Option: 1 sensor for medium temperature (PT 100) or 2 separate temperature sensors for heat transfer fluid and medium (PT 1000) available (automatic identification) - 2 adjustable safety circuits - Stirring bar crack detection - Setting acc. medium temperature: 0,5 K - HOT warning display indicating any residual heat when unit is switched off - Easy-to-read backlit LCD display - Actual medium temperature resolution displayed: 0,5 K (RT to 100 °C); 1 K (from 100 °C upwards) - Fuzzy control and microprocessor technology guarantee maximum control accuracy - PC control via RS 232 interface, with optional safety function - Software labworldsoft® is available to control and document all measured values via PC - 3 modes of operation, e.g. stirring and heating functions can be secured against inadvertent changes of set parameters - Enclosed assembly (IP 42) guarantees long service life - Incl. protection cover H 99
二、技術參數:
攪拌點位數目 |
1 |
每個攪拌點位最大攪拌量 (H2O) |
20 l |
最大攪拌量 (H2O) |
20 l |
電機輸入功率 |
12 W |
電機輸出功率 |
5 W |
轉速顯示 |
LCD |
速度范圍 |
0 - 1200 rpm |
攪拌子最大長度 |
80 mm |
加熱輸出功率 |
600 W |
加熱速度 1升H2O in H 15) |
7 K/min |
加熱溫度范圍 |
室溫 - 340 °C |
加熱溫度控制 |
無級 |
加熱溫度控制精確度 |
0.5 ±K |
轉速控制 |
無級 |
可調安全溫度回路最小值 |
50 °C |
可調安全溫度回路最大值 |
350 °C |
外接溫度傳感器接口 |
PT 100 |
帶傳感器控溫精確度 |
0.2 ±K |
工作盤材質 |
不銹鋼 1.4301 |
工作盤外形尺寸 |
Ø 135 mm |
外形尺寸 |
160 x 97 x 280 mm |
重量 |
2.8 kg |
允許環境溫度 |
5 - 40 °C |
允許相對濕度 |
80 % |
DIN EN 60529 保護方式 |
IP 42 |
RS 232接口 |
是 |
模擬輸出 |
是 |
電壓 |
220 - 230 / 115 / 100 V |
頻率 |
50/60 Hz |
儀器輸入功率 |
630 W | |
