測量參數
pH/ORP/離子/溫度

pH
測量范圍    -2.00 - 16.00 pH
分辨率      0.01 pH
精度        ±0.002
校準點      1-5點
校準液類型  USA, NIST

ORP
測量范圍    ±1999 mV
相對mV測量范圍   ±1999 mV
分辨率      0.1 mV (±199.9 mV內) / 1 mV (其它范圍)
精度        ±0.2 mV (±199.9 mV內) / ±2 mV (其它范圍)

溫度
測量范圍    0.0 ~ 100.0 ℃ / 32.0 ~ 212.0 ℉
分辨率      0.1 ℃ / 0.1 ℉
精度        ±0.5 ℃ / ±0.9 ℉
補償類型    自動或手動 (0 ~ 100 ℃ / 32 ~ 212 ℉)
校準        0.1℃增量偏移；偏移范圍：± 5 ℃ / 9 ℉

Specifications

Product Specification	Description
pH
Range	-2.00 to 16.00 pH
Resolution	0.01 pH
Accuracy	±0.01 pH
Cal. Points	Up to 5
Buffer Sets	USA (1.68, 4.01, 7.00, 10.01, 12.45), NIST (1.68, 4.01, 6.86, 9.18, 12.45)
ORP
Range	±2000 mV
Rel. mV Range	±2000 mV
Resolution	0.1 mV (±199.9 mV) / 1 mV (beyond)
Accuracy	±0.2 mV (±199.9 mV) / ±2 mV (beyond)
Temperature
Range (Meter)	0.0 to 100.0 ºC / 32.0 to 212.0 ºF
Resolution	0.1 ºC / 0.1 ºF
Accuracy	±0.3 ºC / ±0.5 ºF (0 to 70 ºC)
Compensation	ATC / MTC (0 to 100 ºC) (pH only)
Calibration	Offset in 0.1 ºincrements; offset range: ±5.0 ºC / ±9.0 ºF
Power Requirements	9 V DC adapter, 1.3 A (100/240 VAC, SMPS)

Order Information

Order No.	Item

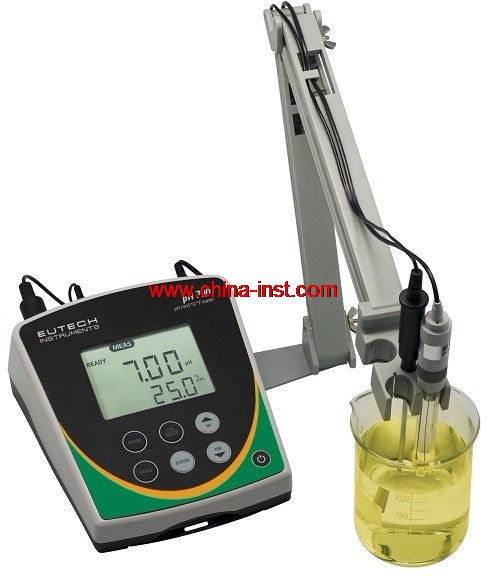

ECPH70042S	Eutech pH 700 Meter With pH Electrode (ECFC7252101B), ATC Probe (PH5TEMB01P), Integral Electrode Holder & 100/240 VAC Adapter
ECPH70042GS	Eutech pH 700 Meter With Glass Body, Open Pore pH Electrode (EC620131), ATC Probe (PH5TEMB01P) Integral Electrode Holder & 100/240 VAC Adapter
ECPH70040S	Eutech pH 700 Meter With Integral Electrode Holder & 100/240 VAC Adapter
ECPH70040	Eutech pH 700 Meter 100/240 VAC Adapter
