訂貨號：

Cat. No. Description Platform

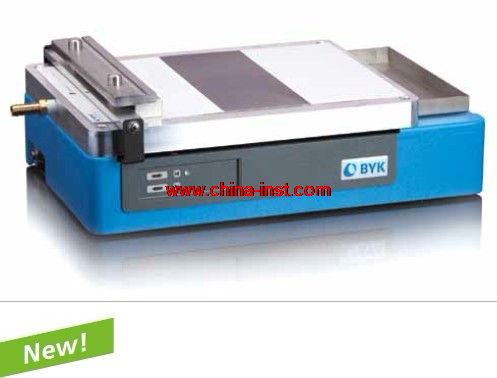

PA-2121 byko-drive with vacuum plate
PA-2122 byko-drive with glass plate and clamp

技術規格：

Voltage 100 - 240 V/50 - 60 Hz
Traverse speeds 10 mm/sec or 1 in/sec
Traverse speed accuracy ±5%
Wire bar diameter limits 6 - 19 mm (0.25 - 0.75 in)
Wire bar test length maximum 406 mm (16 in)
Stroke length 25 - 235 mm (1 - 9.25 in)
Weight 6 kg (13 lbs)
Test panel size maximum 229 x 305 mm (9 x 12 in)
Dimensions 365 x 229 x 127 mm (14.38 x 9 x 5 in)

附件訂貨號：

Accessories
Cat. No. Description
PA-3869 Vacuum pump
PA-3876 Vacuum plate
PA-2123 Weight-bar fixture, 454 gm (1 lb)
PA-2128 Weight-bar fixture, 908 gm (2 lbs)
PA-2129 Weight-bar fixture, 1,362 gm (3 lbs)
PA-2124 External power supply with electrical cord
PA-2125 Drip pan
PA-2127 Glass plate with clamp
PA-2126 O-ring, pk of 4
